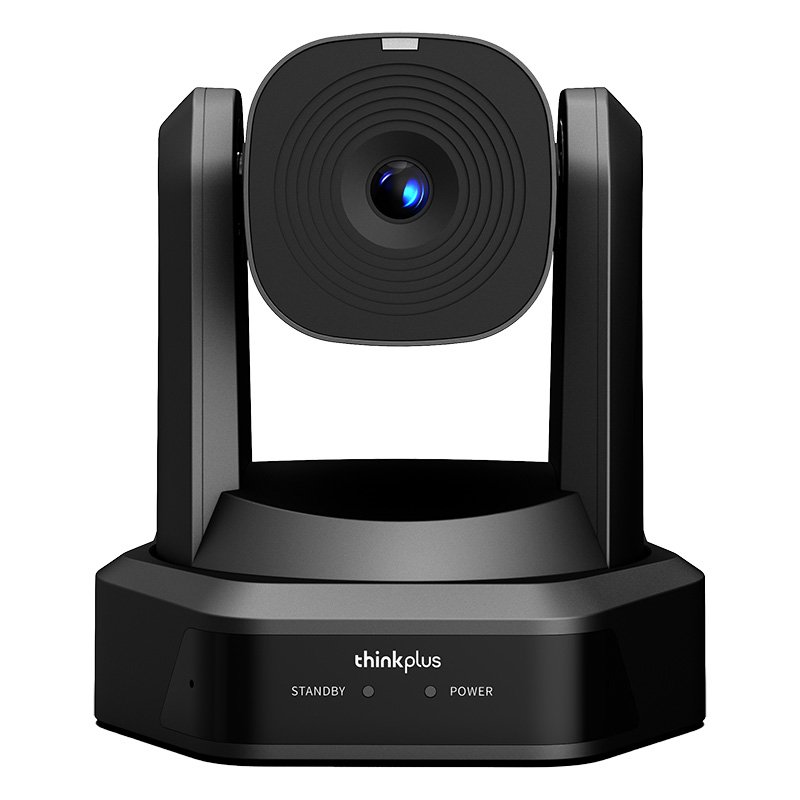

Lenovo thinkplus Fixed Focus 1080P Video Conference Camera YT-HD18M
Features:
-

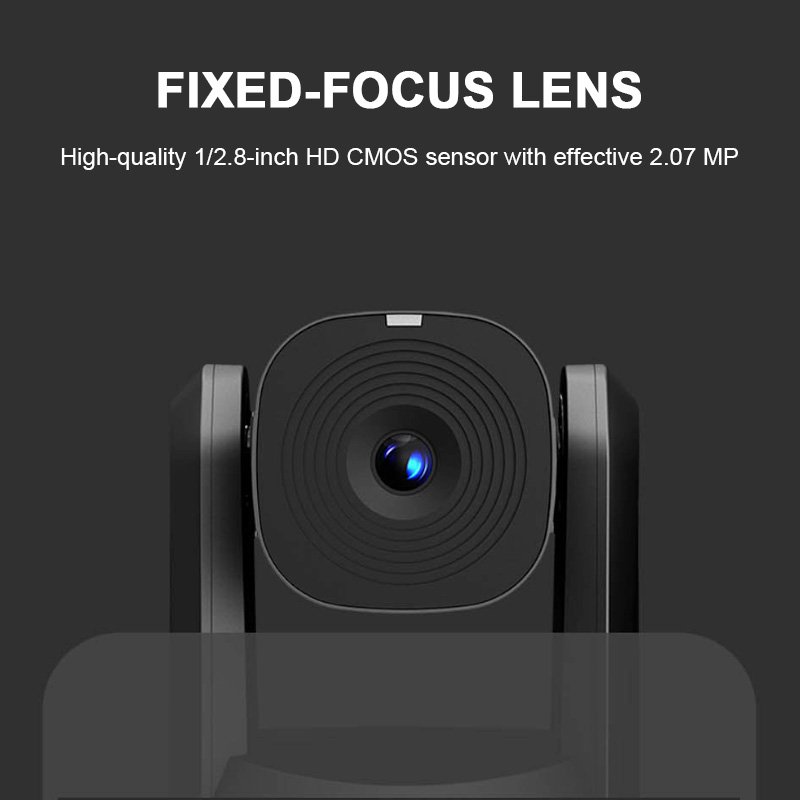

Crystal Clear 1080P Resolution – Features a 1/2.8″ HD CMOS sensor with 2.07 million effective pixels and fixed-focus lens with auto-focus for sharp, high-quality images.
-
16x Digital Zoom – Combines fixed focus with 16x digital zoom for flexible framing and close-up details.
-
AI Human Tracking – Built-in AI algorithm enables single-lens automatic human tracking for meetings, education, and live streaming.
-

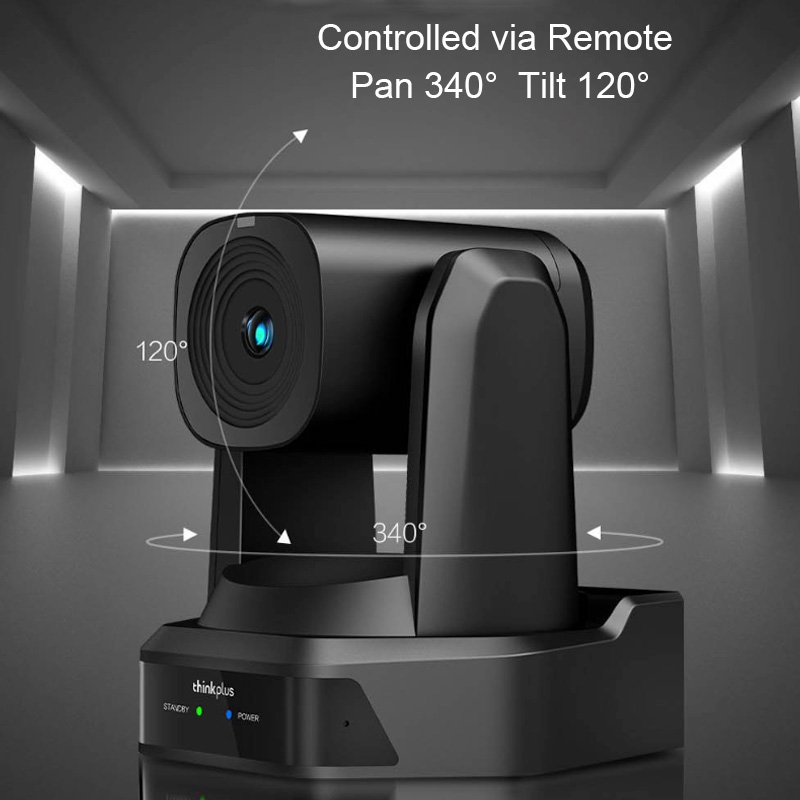

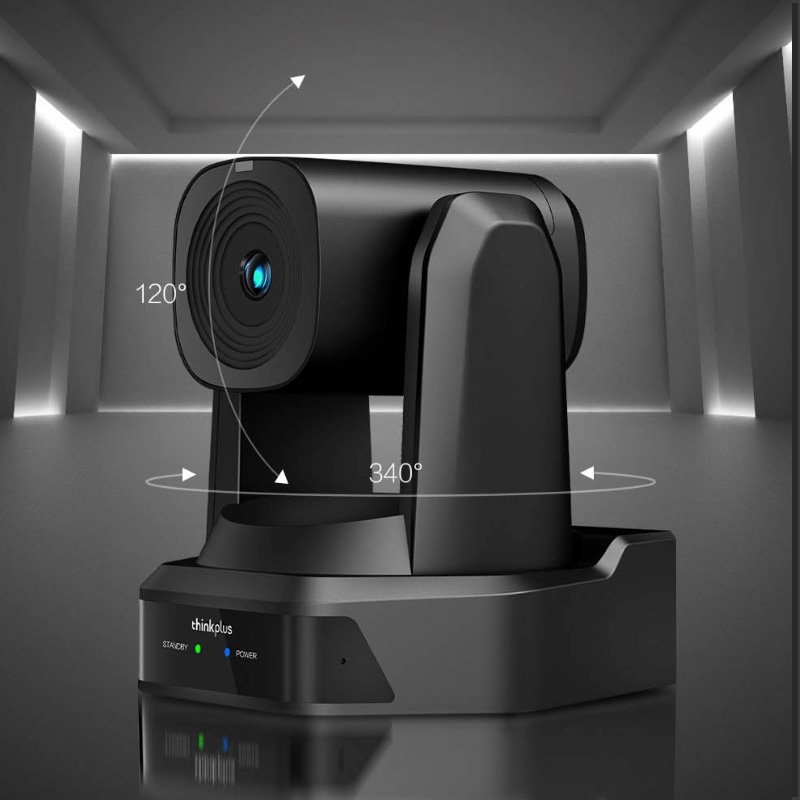

Smooth PTZ Control – Supports 340° pan and 120° tilt, easily adjustable via remote control for wide-area coverage.
-
Preset Positioning – Set 2 preset positions and switch instantly using remote shortcut keys; supports up to 255 presets via control interface.
-
108° Wide-Angle Lens – Captures a broader field of view with low distortion, ideal for group settings.
-

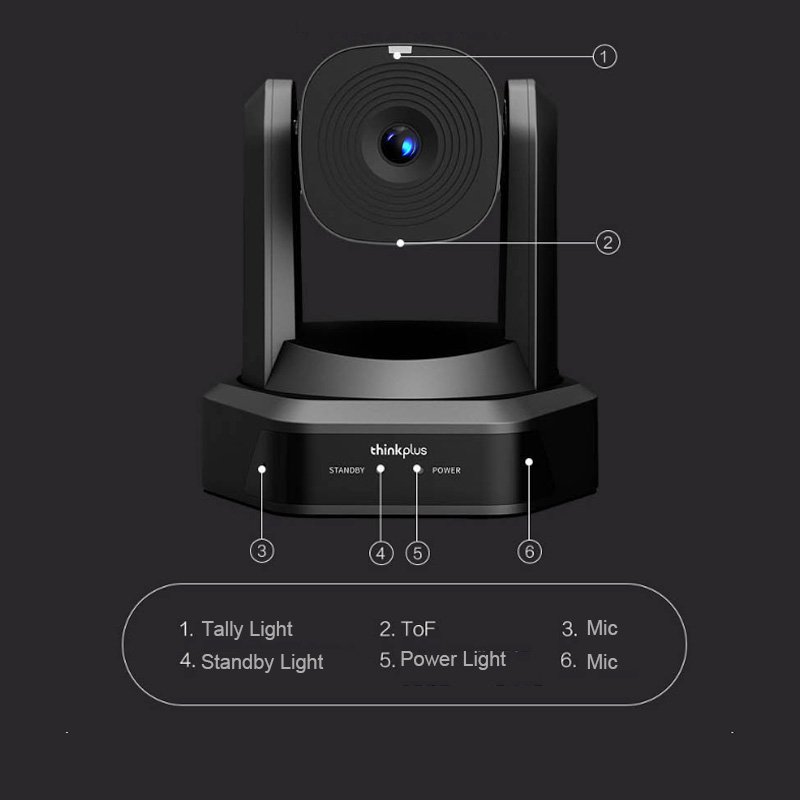

Dual Microphones with Noise Reduction – Integrated microphones deliver clear audio with intelligent background noise filtering.
-
Enhanced Image Features – Includes auto white balance, auto focus, and image flip for improved video quality.
-
Flexible Installation – Can be mounted on ceiling, tripod, or TV for different room configurations.
-
Wide Compatibility – Offers multiple interfaces and protocol support for seamless integration.
-
Reliable Performance – Operates in temperatures from 0°C to 40°C with 12W power consumption for stable long-term use.
Product Specifications | |||
---|---|---|---|
Product Name | Lenovo thinkplus Video Conference Camera | ||
Model | YT-HD18M | Color | Black |
Dimensions | 159.8 × 156.5 × 178.3 mm | Weight | Approx. 1.324 kg |
Sensor | 1/2.8″ CMOS, Effective Pixels: 2.07 million | ||
Scan Mode | Progressive | Lens | Fixed-focus 120° |
Digital Zoom | 16x | Minimum Illumination | 0.5 Lux @ (F1.8, AGC ON) |
Shutter | 1/30s ~ 1/10000s | White Balance | Auto, Indoor, Outdoor, One-click, Manual, Color Temp. |
Backlight Compensation | Supported | ||
Digital Noise Reduction | 2D & 3D DNR | ||
Horizontal Field of View | 108° | Vertical Field of View | 72° |
Pan Range | ±170° | Tilt Range | -30° ~ +90° |
Pan Speed Range | 2.7° ~ 47°/s | Tilt Speed Range | 2.7° ~ 30°/s |
Image Flip | Supported | Audio Input | Built-in dual microphones |
Preset Positions | 255 | Preset Accuracy | 0.1° |
USB Features | |||
Supported OS | Windows 7/8/10/11, Linux, Android | ||
Color Space / Compression | YUY2 / H.264 / MJPEG | ||
Video Format | YUY2: Up to 1080P5 H.264 AVC: Up to 1080P30 MJPEG: Up to 1080P30 |
||
USB Audio | Supported | USB Protocol | UVC 1.1 |
UVC PTZ Control | Supported | ||

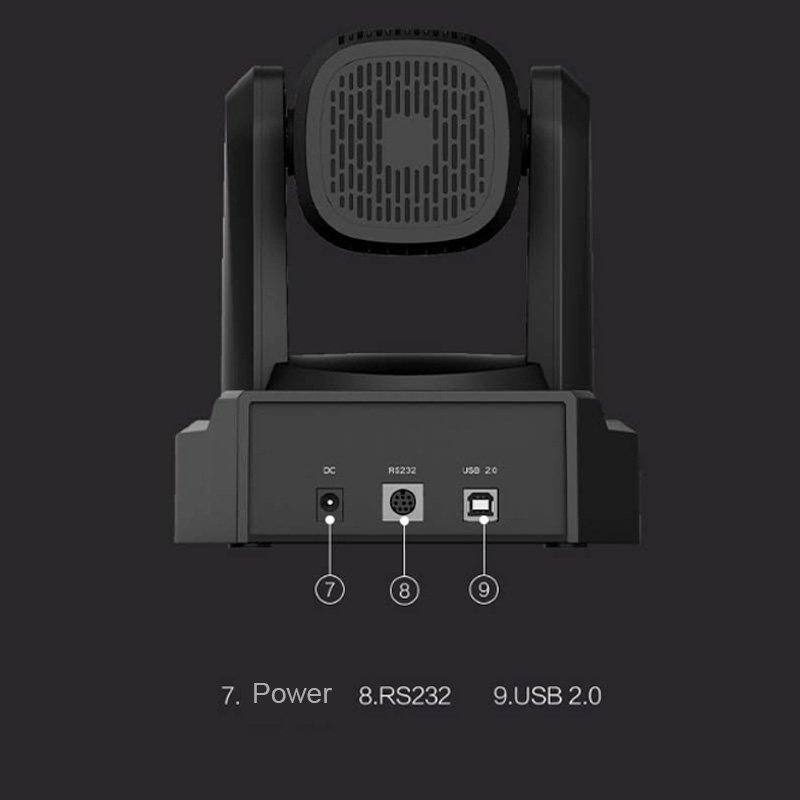

Interface | |||
USB Port | 1× USB 2.0 (Type-B) | ||
Communication Interface | 1× RS232: 8-pin mini-DIN, Max Distance: 30m, Protocols: VISCA / Pelco-D / Pelco-P | ||
Power Interface | JEITA Type (DC) | ||
General Specifications | |||
Input Voltage | 12V | Input Current | 1A |
Operating Temperature | 0°C ~ 40°C | Operating Humidity | 20% ~ 80% |
Storage Temperature | -40°C ~ 60°C | Storage Humidity | 20% ~ 95% |
Power Consumption | 12W |
